Introduction

AI has greatly progressed in recent years, from Computer Vision to Natural Language Processing, and is revolutionising many fields.

Healthcare is one natural domain for AI to be applied to, as it can help ease the lives of doctors, from assisted medical diagnosis, to pattern recognition, through automated handling of medical files to lessen administrative burden.

In the recent years, the FDA has even started giving approval of AI/ML based devices or algorithms. This highlights the potential of AI to be incorporated deeper into our lives, with its use in healthcare.

However, there are numerous obstacles along the way for a massive deployment in practice. Interpretability, fairness, privacy and transparency are examples of key issues that hinder the adoption of AI in healthcare.

But this is where Confidential Computing comes into play. While interpretability and fairness are intrinsic problems that are orthogonal to the use of Confidential Computing, this technology provides privacy-by-design mechanisms and transparency of data treatment.

Indeed, we have seen in the Confidential Computing explained series how secure enclaves provide such key features:

  • Data in use protection, which guarantees that a service provider handling your data in a secure enclave has no way to have access to it in clear, thanks to memory isolation and encryption.
  • Remote attestation, which guarantees that you will only share secrets with genuine enclaves, with the right security features and loaded with a code you know and trust.

Those properties are great as they are key to share data to remote parties who will handle our sensitive data. Let us see with a real example how Confidential Computing help us secure critical workloads, such as pattern detection and assisted diagnosis with COVID-19.

I - Use case

A - Deep learning for assisted diagnosis

Deep learning has greatly advanced these recent years and has the potential to reduce burden on clinicians and radiologists to interpret medical images.

Example of CXR image from the COVIDx Dataset

For instance, in the case of SARS-CoV-2, neural networks have shown good results to help detect COVID-19 early signs from Chest X-ray (CXR). Indeed, several papers of the open-source COVID-Net initiative have highlighted how deep learning can be leveraged to assist front-line health workers.

AI models can analyse CXR images to help differentiate SARS-CoV-2 positive and negative infections, and ease the burden of interpreting CXR images to screen for COVID-19.

Several papers of the COVID-Net initiative have shown how deep convolutive and Transformers models can provide promising results in terms of accuracy, sensitivity and PPV, as well as being consistent with radiologists interpretations.

B - Deployment challenge

Now that we have seen how AI models could help us ease screening of COVID-19 cases, a natural question is how to actually leverage this in practice.

Let us suppose that a model has been trained on CXR images and exhibits good performances, and hospitals have shown interest in using it in production to help them handle CXR images.

Because hospitals do not necessarily have the infrastructure, nor the expertise in-house to deploy and maintain such models, it might make sense for them to rely on a third party to provide them such service.

Imagine we have a startup specialised in AI for healthcare that has the team to actually serve a COVID-Net model in production. As a Cloud native startup, their natural tendency is to deploy their model in the Cloud, as they do not want to manage infrastructure. Their expertise and value added is in providing the model and the client interface for hospitals to consume their service.

Hospitals would be more than glad to send CXR images to this startup and get predictions with a Saas interface, as it would be easy for them to use and requires little onboarding. However, by sending their data to this AI startup hosted in the Cloud, medical images would be exposed to uncontrolled data usage.

Example of data exposure when resorting to third parties

Indeed, by using a third party AI Saas solution, hospitals lose control over the data, as the AI provider, and the Cloud provider, would have access to the data sent.

Because data is protected only in storage and transit, and not when analysed in the Cloud by the AI model, data is exposed in the Cloud and could be used without the hospital's knowledge by malicious administrators of the Cloud or company.

Consequently, hospitals would need to trust the company providing the AI model as well as  the Cloud provider with their confidential data. In most cases, this is a risk they are not willing to take, even though they could greatly benefit from such service.

Additionally, regulation often demands that particular care is given to ensure data protection when shared to third parties, as well as providing transparency of treatment.

These properties are often hard to obtain when one deploys a solution on a Public Cloud, therefore making it hard to distribute such COVID-19 analysis service.

C - Confidential AI deployment

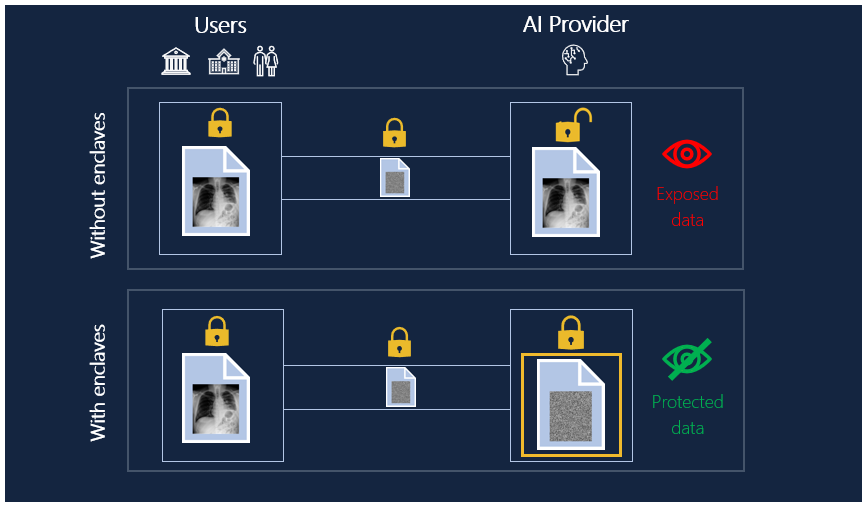

Data analysis with end-to-end protection using enclaves

Confidential Computing aims to solve such problems. By leveraging secure enclaves, it becomes possible to guarantee data protection from end-to-end, even when we send data to a third party hosted in the Cloud.

We cover deeper the threat model and the protections provided by secure enclaves in our article Confidential Computing explained, part 3: data in use protection.

The main idea is that secure enclaves provide a trusted execution environment, enabling people to send sensitive data to a remote environment, while not risking exposing their data.

This is done through isolation and memory encryption of enclave contents by the CPU. By sending data to this secure environment to be analysed, hospitals and patients can have guarantees that their data is not accessible neither by the Cloud Provider, nor the AI company, thanks to the hardware protection.

Therefore, hospitals can benefit from a state-of-the-art service without going through complex deployment on premise and adopt a solution that they do not need to maintain themselves. All this, while keeping a high level of data protection as their data is not exposed to the Service Provider or the Cloud Provider.

II - Deployment of assisted diagnosis model with BlindAI

Now that we have talked about how secure enclaves can be used to deploy models on sensitive data, especially in a Public Cloud setting, we are going to see how to do it in practice with BlindAI.

As we did in the article Deploy Transformers with confidentiality, we will follow the same steps to deploy and consume an AI model. In the same fashion, we will only show you the simulation mode. Simulation enables to test the server side on any machine, but without the security guarantees that machines with Intel SGX in hardware mode provide.

If you want to run BlindAI in hardware mode, you will need supported hardware, and you will need to install the proper Intel drivers. Learn more about them in this documentation page.

The model we will use here is a deep convolutional network, the COVID-Net-CXR-2.

Here is the notebook for this article.

A - Launch server

The first step is similar to the Transformers' article, we just need to deploy our server using our Docker image.

docker run -p 50051:50051 -p 50052:50052 mithrilsecuritysas/blindai-server-sim
Run the inference server in simulation mode

B - Upload model

The COVID-Net-CXR-2 model is available in ONNX format here. We have taken care to export it in ONNX format, but you can convert it yourself from the original repository of COVID-Net.

You simply need to download it and upload it to the remote server using BlindAI client SDK. The only difference with the Transformers example is that here the shape is (1,480,480,3), and we want to feed floats and not integers.

from blindai.client import BlindAiClient, ModelDatumType

# Launch client
client = BlindAiClient()

client.connect_server(addr="localhost", simulation=True)

client.upload_model(model="./COVID-Net-CXR-2.onnx", shape=(1,480,480,3), dtype=ModelDatumType.F32)
Upload the model to a server in simulation mode

C - Get prediction

Now that that the server is launched and has received the COVID-Net model, we simply need to send securely a Chest-X-Ray image to be analysed.

For this example, we will use the same preprocessing steps used in the Covid-Net repository.

import cv2

def crop_top(img, percent=0.15):
    offset = int(img.shape[0] * percent)
    return img[offset:]

def central_crop(img):
    size = min(img.shape[0], img.shape[1])
    offset_h = int((img.shape[0] - size) / 2)
    offset_w = int((img.shape[1] - size) / 2)
    return img[offset_h:offset_h + size, offset_w:offset_w + size]

def process_image_file(filepath, size, top_percent=0.08, crop=True):
    img = cv2.imread(filepath)
    img = crop_top(img, percent=top_percent)
    if crop:
        img = central_crop(img)
    img = cv2.resize(img, (size, size))
    return img
Preprocessing functions

We will fetch an image from their GitHub as well by executing:

wget https://raw.githubusercontent.com/lindawangg/COVID-Net/master/assets/ex-covid.jpeg

We now need to preprocess it:

img = process_image_file("ex-covid.jpeg", size=480)
img = img.astype("float32") / 255.0
img = img[np.newaxis,:,:,:]

This is the image we want the COVID-Net model to analyze:

Preprocessed CXR image

For data marshaling reason, we will flatten the image and convert it to a list:

flattened_img = img.flatten().tolist()

Now everything is ready to be sent to the Confidential AI server:

from blindai.client import BlindAiClient

# Load the client
client = BlindAiClient()
client.connect_server("localhost", simulation=True)

# Get prediction
response = client.run_model(flattened_img)
Get prediction with a server in simulation mode

We can now see what is the probability that this patient might be infected with COVID:

>>> response.output
[0.012251622974872589, 0.987748384475708]

You can check the correctness of the prediction by comparing it to results from the original ONNX model:

>>> import onnxruntime

>>> ort_session = onnxruntime.InferenceSession("COVID-Net-CXR-2.onnx")
>>> ort_inputs = {ort_session.get_inputs()[0].name: img}

>>> ort_outs = ort_session.run(None, ort_inputs)
>>> ort_outs

[array([[0.01225174, 0.98774827]], dtype=float32)]

Conclusion

Et voila! We have seen through this example how one can deploy a model to analyze CXR data with end-to-end protection. By leveraging BlindAI, patients and hospitals can have guarantees that the medical data is not exposed to third parties, from the company providing the service, to the Cloud Service Provider.
